Q11090针式点阵打标机

Design for production line versatility

Download Directory Contact Us
Product characteristics

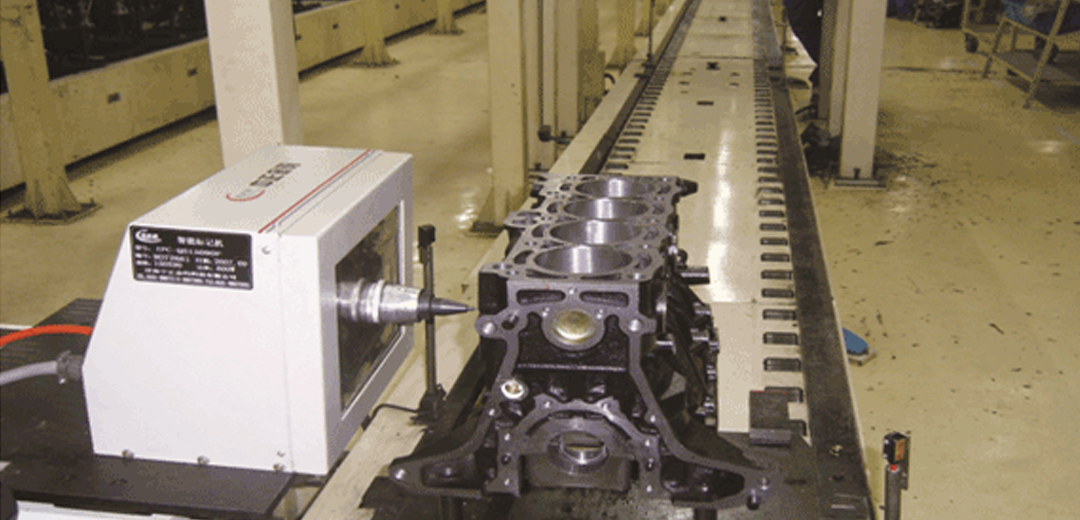

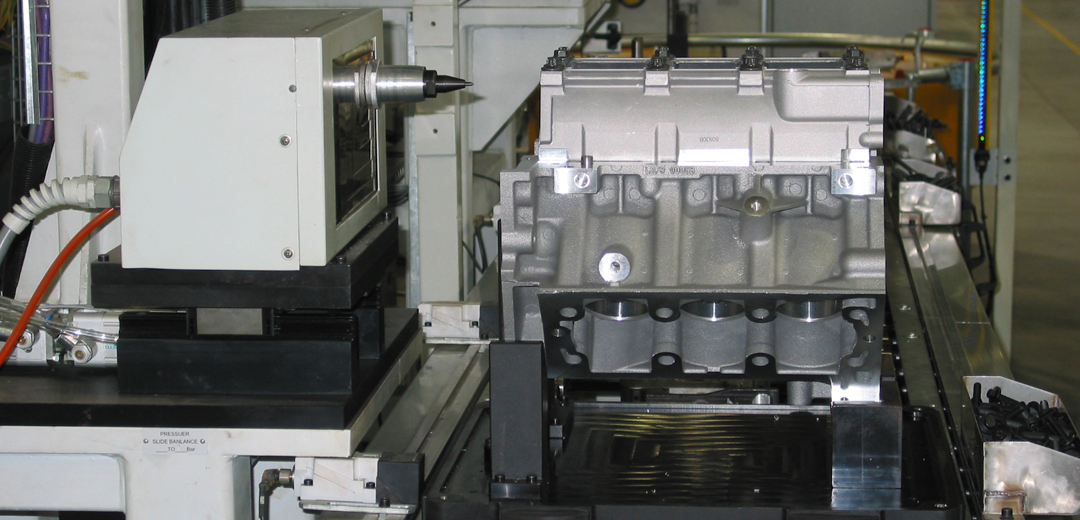

This product is designed for fixed installation on the production line. It is suitable for the demands of high-volume manufacturing. The marking depth and range are tailored to meet the online printing requirements of the engine industry and automotive component automation lines.


Stable: the device is driven by high-quality motors, ensuring smooth operation, fast speed, and greater precision

Long-lasting: the device is capable of continuous, uninterrupted operation, demonstrating its robustness and durability


versatility: the device has strong applicability with a wide range of marking depths.



application
Technical Parameter

Marking Window: 90mm*110mm；

Depth: 0-0.8mm (varies according to the material);

Speed: 120 char/min (5*3 character);

Weight: 12kg;

Working Temperature: -10～40℃

Max Marking Hardness: Rc60

Controller: Super-Engraving Servo Control Box (GFHSF2B01) / Integrated Controller (GF920AU-SF).



This marking head is compatible with Kinmark GF920 controller. The GF920 series controller, a recent innovation by Kinmark, is an integrated product based on WIN7/WIN10. It features an industrial-grade resistive touch screen with an aluminum panel; the touch operation is user-friendly. Highly integrated, it offers strong electromagnetic interference resistance and a fanless design for waterproofing and dust prevention. Its convenience for integration into industrial control systems and potential for secondary development make it a standout choice.
