SQLF65115超刻点阵打标机

High speed Disc engraving

Download Directory Contact Us
Product characteristics

High-Speed, Stable, Suitable for Online Marking of Brake Discs and Similar Components:



Stable: precision screw transmission replaces synchronous belt transmission, so as to be stable in operation and high in precision

Power: the stepper motor is upgraded to the servo motor, so that the power is strong; and closed-loop control makes it more reliable.

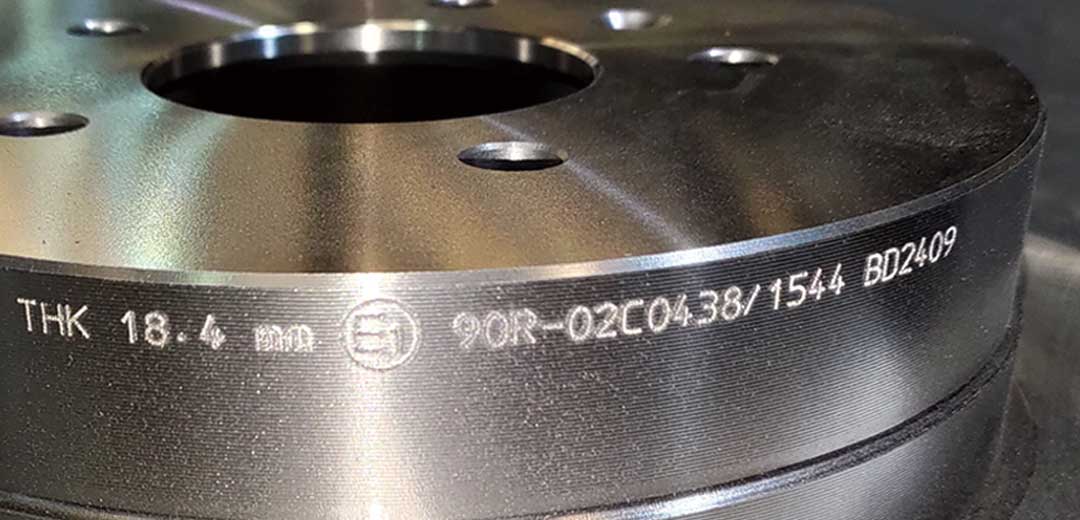

High-speed: high speed marking with 6 characters per second can be achieved. It is stable and suitable for online marking of brake discs and similar components.

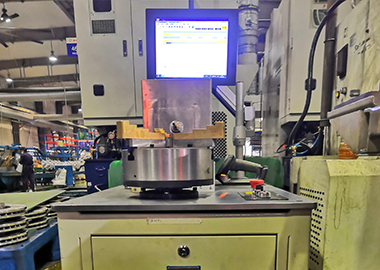

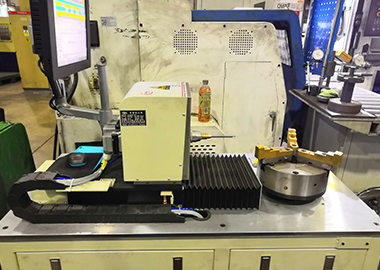

application
Technical Parameter

Marking Window: 65×30mm、65×115mm、115×115mm；

Depth: 0-0.8mm (varies according to the material);

Speed: 6 char/s (height: 5mm, width: 3mm, flat surface);

Marking Type: Pneumatic dot-peen;

Weight: 9.8、17.3、19.3kg;

Degree of Protection: IP54；

Controller: Super-Engraving Servo Control Box (GFHSF2B01) / Integrated Controller (GF920AU-SF).
