SQKLF6530超刻轻刻划打标机

High speed Compact design

Download Directory Contact Us
Product characteristics

High-speed, stable, and quiet marking solutions for automotive components, ideal for noise-sensitive and high-velocity environments, with a design that accommodates tight spaces. It is designed for fixed installation at production line stations or for use with specialized desktop fixtures. It meets the requirements for high takt and massive production demands.


High-speed: high-speed marking with 2.5 characters per second (word height: 5mm, word width: 3mm) can be achieved

Power: the machine is driven by servo motor with strong power and reliable closed-loop control.


Stable: precision screw transmission enables stable operation.

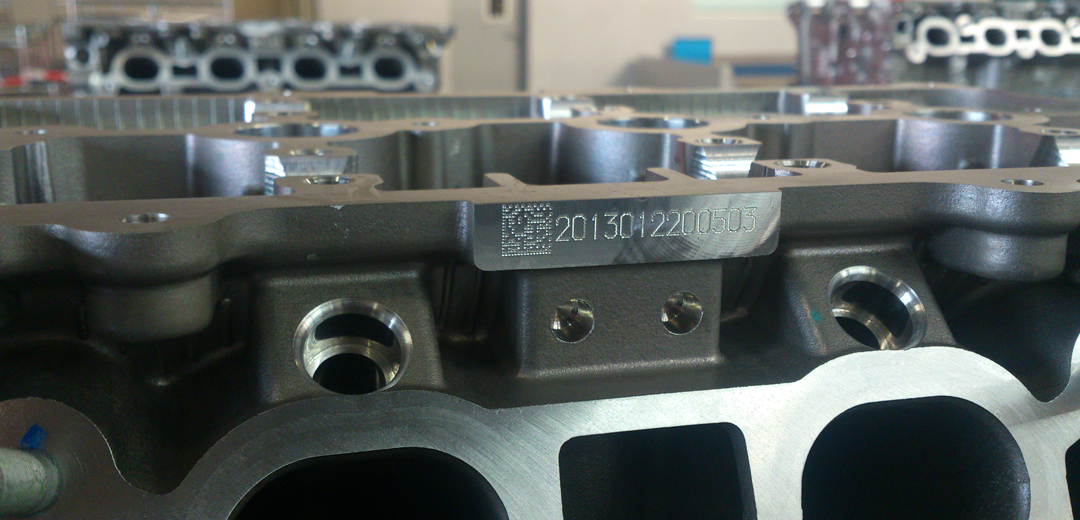

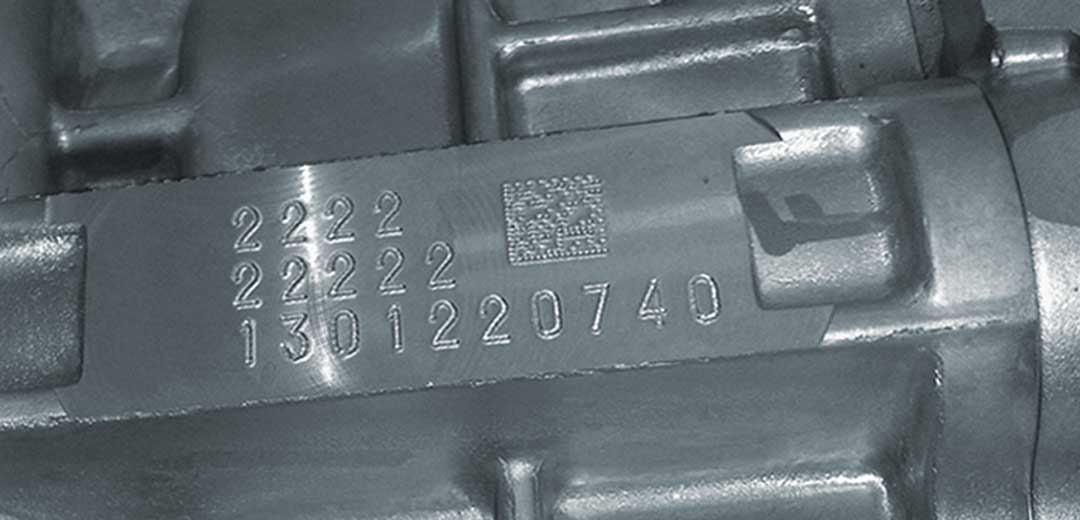

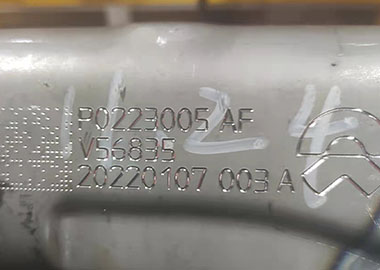

application
Technical Parameter

Marking Window: 65×30mm、65×115mm、115×115mm；

Depth: 0-0.3mm (varies according to the material);

Speed: 2.5 char/s (height: 5mm, width: 3mm, flat surface);

Marking Type: Pneumatic;

Weight: 9.8、17.3、19.3kg;

Degree of Protection: IP54；

Controller: Super-Engraving Servo Control Box (GFHSF2B01) / Integrated Controller (GF920AU-SF).

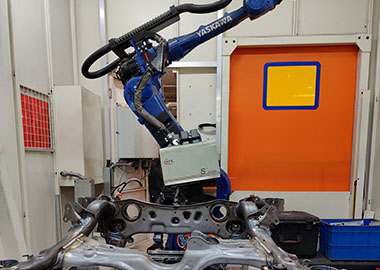

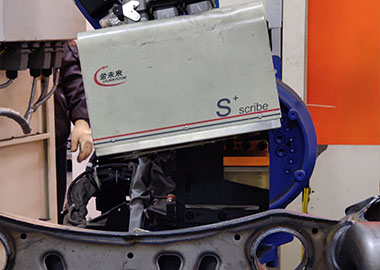

Applications
