SQHKB15555超刻打标机

High speed Large marking window

Download Directory Contact Us
Product characteristics


A high-speed scribing marking head capable of completing a standard VIN code in just 15 seconds. With a 155×55mm marking window, it covers the majority of the VIN marking areas. It is designed for fixed installation at production line stations or for use with specialized desktop fixtures. It meets the requirements for high takt and massive production demands.


Quality: the device comes with a standard diamond engraving needle that features sharp tip and produces smooth and aesthetically pleasing marks without burrs

High-strength: the device is made of duraluminum-alloy, featuring a compact, aesthetic design with high strength
High-speed: a standard VIN code can be completed in only 15 seconds
PIN CHECK: A new feature that incorporates a pin detection device, providing real-time monitoring of the scribing pin's action.

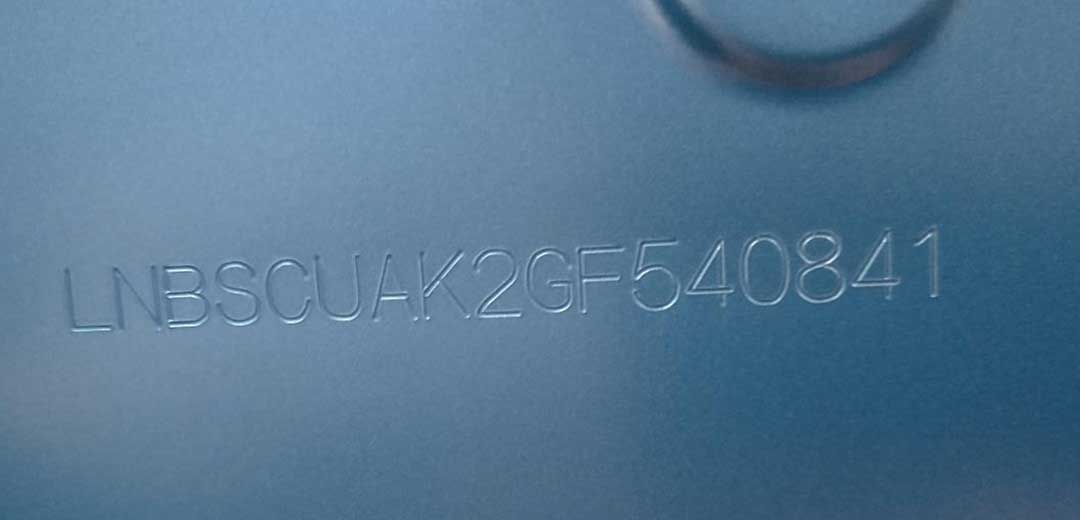

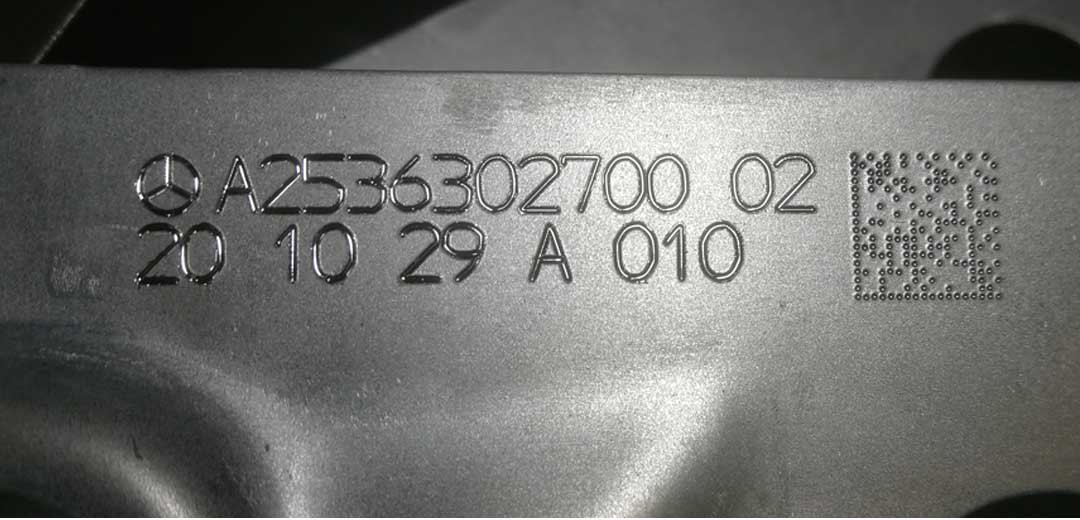

application
Technical Parameter

Marking Window: 155×55mm；

Depth: 0-0.4mm (varies according to the material);

Speed: a standard VIN code in 15s (material: Q235 steel; height: 7mm, width: 4mm, 19 bits);

Marking Type: Pneumatic;

Weight: 19kg;

Degree of Protection: IP54；

Controller: Super-Engraving Marking Control Box (GFHBBAG01) / Integrated Controller (GF920BU)

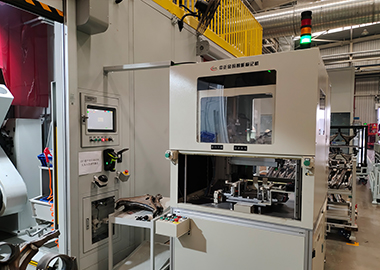

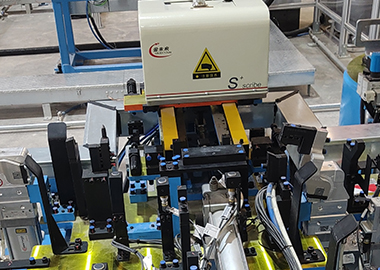

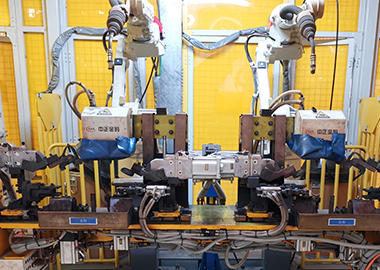

Applications
